토크 가이드라인


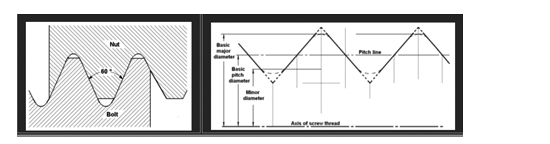

< CLASS 8.8 GALVANIZED or ZINC PLATED BOLTS >
        OIL *GF=0.75
㎍=0.10,
㎼=0.16
    DRY *GF=0.62
㎍=0.15,
㎼=0.18

HEICO
LOCK
Bolt
Size
UNC Pitch Torque Clamp Load Torque Clamp Load
Part# (metric) (TPI) (mm) (Nm) (ft lbs) (kN) (lbf) (Nm) (ft lbs) (kN) (lbf)
HLS-3 M3 N5-40 0.5 1.3 1.0 2.4 540 1.3 1.0 2 450
HLS-3.5 M3.5 N6-32   2.0 1.5 2.5 650 2.2 1.6 2.1 540
HLS-4 M4 N8-32 0.7 3.1 2.3 4.2 944 3.1 2.3 3.5 787
HLS-5 M5 N10-24 0.8 6 4.4 6.8 1529 6 4.4 5.6 1259
HLS-6 M6   1 10.5 7.7 9.7 2181 10.5 7.7 8 1798
HLS-1/4"   1/4"-20   12.5 9.2 9.7 2181 12.3 9.1 8 1900
HLS-8 M8 5/16"-18 1.25 25 18.4 18 4047 25 18.4 15 3372
HLS-3/8"   3/8"-16   42 31.0 24 5500 43.4 32 20 4500
HLS-10 M10   1.5 49 36 28 6295 50 37 23 5171
HLS-11 M11 7/16"-14   65 48 33 7500   48 28 6200
HLS-12 M12   1.75 85 63 40 8992 85 63 33 7419
HLS-1/2"   1/2"-13   101 75 44 9900 102 75 36 8200
HLS-14 M14 9/16"-12 2 135 100 55 12364 136 100 46 10341
HLS-16 M16 5/8"-11 2 205 151 75 16861 208 153 62 13938
HLS-18 M18   2.5 288 212 92 20682 291 215 76 17085
HLS-3/4"   3/4"-10   356 263 104 23400 353 260 87 19500
HLS-20 M20   2.5 402 296 118 26527 408 301 97 21806
HLS-22 M22 7/8"-9 2.5 548 404 146 32822 557 411 120 26977
HLS-24 M24   3 693 511 169 37993 703 519 140 31473
HLS-1"   1"-8   840 620 187 42000 841 620 153 34500
HLS-27 M27   3 1010 745 221 49683 1028 758 182 40915
HLS-30 M30 1 1/8"-7 3.5 1379 1017 269 60474 1401 1033 222 49908
HLS-33 M33 1 1/4"-7 3.5 1855 1368 333 74861 1889 1393 275 61822
HLS-36 M36 1 3/8"-6 4 2394 1766 392 88125 2436 1797 324 72838
HLS-39 M39 1 1/2"-6 4 3087 2277 468 105211 3145 2320 387 87001
HLS-42 M42   4.5 3820 2817 538 120947 3890 2869 445 100040

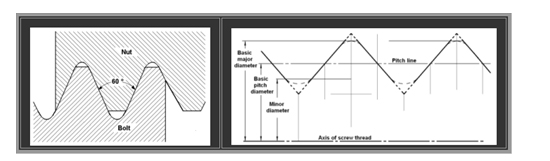

??< NON-PLATED CLASS 10.9 BOLTS >
Wedge Lock       OIL *GF=0.75
㎍=0.10,

Washers Bolt
Size
Pitch Torque ㎼=0.16 Clamp Load
Part# (metric) (UNC) (mm) (Nm) (ft lbs) (kN) (ft lbs)
HLS-3 M3 #5 0.5 1.8 1.3 3.2 719
HLS-4 M4 #8 0.7 4.1 3.0 5.6 1259
HLS-5 M5 #10 0.8 8.1 6.0 9.1 5046
HLS-6 M6   1 14 10.3 12.9 2900
HLS-8 M8 5/16" 1.25 34 25.1 23 5171
HLS-10 M10   1.5 67 49 37 8318
HLS-12 M12   1.75 115 85 54 12140
HLS-14 M14 9/16" 2 183 135 74 16636
HLS-16 M16 5/8" 2 279 206 100 22481
HLS-18 M18   2.5 391 288 123 27652
HLS-20 M20   2.5 547 403 156 35070
HLS-22 M22 7/8" 2.5 745   194 43613
HLS-24 M24   3 942 695 225 50582
HLS-27 M7   3 1375 1014 294 66094
HLS-30 M30 1 1/8" 3.5 1875 1383 358 80482
HLS-33 M33 1 1/4" 3.5 2526 1863 443 99590
HLS-36 M36 1 3/8" 4 3259 2404 522 117350
HLS-39 M39 1 1/2" 4 4203 3100 624 140281
HLS-42 M42   4.5 5202 3837 716 160963

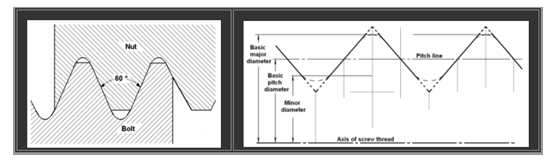

< NON-PLATED CLASS 12.9 BOLTS >
        OIL *GF=0.71, ㎍=0.13, ㎼=0.12
HEICO-
LOCK
Bolt
Size
Pitch Torque Clamp Load
Part# (metric) (UNC) (mm) (Nm) (ft lbs) (kN) (ft lbs)
HLS-3 M3 #5 0.5 2.0 1.5 3.9 877
HLS-4 M4 #8 0.7 4.6 3.4 6.7 1506
HLS-5 M5 #10 0.8 9.1 6.7 10.9 2450
HLS-6 M6   1 45.8 11.7 15.4 3462
HLS-8 M8 5/16" 1.25 38.0 28.0 28.0 6295
HLS-10 M10   1.5 75.0 55 44.0 9892
HLS-12 M12   1.75 128.0 94 65.0 14613
HLS-14 M14 9/16" 2 204.0 150 89.0 20008
HLS-16 M16 5/8" 2 311.0 229 120.0 26977
HLS-18 M18   2.5 437.0 322 148.0 33272
HLS-20 M20   2.5 610.0 450 188.0 42264
HLS-22 M22 7/8" 2.5 831.0   233.0 52380
HLS-24 M24   3 1052.0 776 270.0 60698
HLS-27 M7   3 1533.0 1131 352.0 79133
HLS-30 M30 1 1/8" 3.5 2091.0 1542 430.0 96668
HLS-33 M33 1 1/4" 3.5 2815.0 2076 532.0 119598
HLS-36 M36 1 3/8" 4 3633.0 2680 626.0 140730
HLS-39 M39 1 1/2" 4 4683.0 3454 748.0 168157
HLS-42 M42   4.5 5799.0 4277 860.0 193336

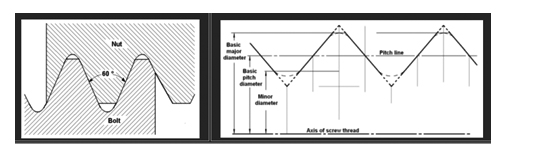

< HIGH GRADE BOLTS ASTM A 574 >
HEICO-LOCK       OIL *GF=0.75
㎍=0.10,

Wedge Lock         ㎼=0.16
Washers Bolt
Size
Pitch Torque Clamp Load
Part# (metric) (UNC) (mm) (Nm) (ft lbs) (kN) (ft lbs)
HLS-3 N5-40 UNC #5 40 2.3 1.7 3.87 870
HLS-3.5 N6-32 UNC #6 32 3.0 2.2 4.40 990
HLS-4 N8-32 UNC #8 32 5.2 3.8 6.67 1500
HLS-5 N10-24 UNC #10 24 7.9 5.8 8.45 1900
HLS-1/4" 1/4"-20 UNC 1/4" 20 17.6 13.0 15 3400
HLS-8 5/16"-18 UNC 5/16" 18 35.3 26.0 25 5700
HLS-3/8" 3/8"-16 UNC 3/8" 16 61.0 45.0 37 8400
HLS-11 7/16"-14 UNC 7/16" 14 94.9 70 51 11500
HLS-1/2" 1/2"-13 UNC 1/2" 13 147.8 109 68 15400
HLS-14 9/16"-12 UNC 9/16" 12 203.4 150 88 19800
HLS-16 5/8"-11 UNC 5/8" 11 298.3 220 109 24600
HLS-3/4" 3/4"-10 UNC 3/4" 10 515.2 380 162 36400
HLS-22 7/8"-9 UNC 7/8" 9 823.0 607 223 50200
HLS-1" 1"-8 UNC 1" 8 1240.6 915 293 65900
HLS-30 1 1/8"-7 UNC 1 1/8" 4 1762.6 1300 369 83000
HLS-33 1 1/4"-7 UNC 1 1/4" 4 2454.0 1810 467 105000
HLS-36 1 3/8"-6 UNC 1 3/8" 4 3226.8 2380 560 126000
HLS-39 1 1/2"-6 UNC 1 1/2" 4 4257.3 3140 681 153000
