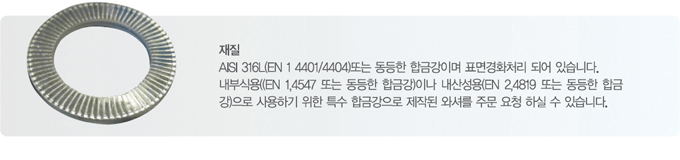

HEICO-LOCK WASHER - 316L Stainless Steel ( Small OD ) |
|
|
|
 |
| |
|
|
Inch |
|
|
|
Metric |
|
|
|
Standard |
| HEICO |
Metric |
Inch |
Inner
Ø |
Outer Ø |
Thick
ness |
~Weight 100
pairs |
Inner
Ø |
Outer Ø |
Thick
ness |
~Weight
100
pairs |
Pack
aging |
| Part# |
d
(inch) |
d
(inch) |
inch |
lbs |
d
(mm) |
D
(mm) |
mm |
kg |
(pairs) |
| HLS-3SS |
M3 |
#5 |
0.134 |
0.276 |
0.071 |
0.07 |
3.4 |
7 |
1.8 |
0.03 |
200 |
| HLS-3.5SS |
M3.5 |
#6 |
0.154 |
0.299 |
0.071 |
0.09 |
3.9 |
7.6 |
1.8 |
0.04 |
200 |
| HLS-4SS |
M4 |
#8 |
0.173 |
0.299 |
0.071 |
0.09 |
4.4 |
7.6 |
1.8 |
0.04 |
200 |
| HLS-5SS |
M5 |
#10 |
0.213 |
0.354 |
0.071 |
0.11 |
5.4 |
9 |
1.8 |
0.05 |
200 |
| HLS-6SS |
M6 |
|
0.256 |
0.425 |
0.071 |
0.15 |
6.5 |
10.8 |
1.8 |
0.07 |
200 |
| HLS-1/4"SS |
|
1/4" |
0.283 |
0.453 |
0.071 |
0.18 |
7.2 |
11.5 |
1.8 |
0.08 |
200 |
| HLS-8SS |
M8 |
5/16" |
0.343 |
0.531 |
0.098 |
0.33 |
8.7 |
13.5 |
2.5 |
0.15 |
200 |
| HLS-3/8"SS |
|
3/8" |
0.406 |
0.654 |
0.098 |
0.51 |
10.3 |
16.6 |
2.5 |
0.23 |
200 |
| HLS-10SS |
M10 |
|
0.421 |
0.654 |
0.098 |
0.51 |
10.7 |
16.6 |
2.5 |
0.23 |
200 |
| HLS-11SS |
M11 |
7/16" |
0.449 |
0.728 |
0.098 |
0.64 |
11.4 |
18.5 |
2.5 |
0.29 |
200 |
| HLS-12SS |
M12 |
|
0.512 |
0.768 |
0.098 |
0.64 |
13 |
19.5 |
2.5 |
0.29 |
200 |
| HLS-1/2"SS |
|
1/2" |
0.531 |
0.768 |
0.098 |
0.59 |
13.5 |
19.5 |
2.5 |
0.27 |
100 |
| HLS-14SS |
M14 |
9/16" |
0.598 |
0.906 |
0.134 |
1.39 |
15.2 |
23 |
3.4 |
0.63 |
100 |
| HLS-16SS |
M16 |
5/8" |
0.669 |
1.000 |
0.134 |
1.52 |
17 |
25.4 |
3.4 |
0.69 |
100 |
| HLS-18SS |
M18 |
|
0.768 |
1.142 |
0.134 |
1.87 |
19.5 |
29 |
3.4 |
0.85 |
100 |
| HLS-3/4"SS |
|
3/4" |
0.787 |
1.209 |
0.134 |
2.31 |
20 |
30.7 |
3.4 |
1.05 |
100 |
| HLS-20SS |
M20 |
|
0.843 |
1.209 |
0.134 |
2.09 |
21.4 |
30.7 |
3.4 |
0.95 |
100 |
| HLS-22SS |
M22 |
7/8" |
0.921 |
1.358 |
0.134 |
2.84 |
23.4 |
34.5 |
3.4 |
1.29 |
100 |
| HLS-24SS |
M24 |
|
0.996 |
1.535 |
0.134 |
3.70 |
25.3 |
39 |
3.4 |
1.68 |
100 |
| HLS-1"SS |
|
1" |
1.098 |
1.535 |
0.134 |
3.37 |
27.9 |
39 |
3.4 |
1.53 |
100 |
| HLS-27SS |
M27 |
|
1.118 |
1.654 |
0.260 |
7.24 |
28.4 |
42 |
6.6 |
3.29 |
50 |
| HLS-30SS |
M30 |
1 1/8" |
1.236 |
1.850 |
0.228 |
9.24 |
31.4 |
47 |
5.8 |
4.2 |
50 |
| HLS-33SS |
M33 |
1 1/4" |
1.354 |
1.909 |
0.260 |
8.73 |
34.4 |
48.5 |
6.6 |
3.97 |
25 |
| HLS-36SS |
M36 |
1 3/8" |
1.472 |
2.165 |
0.260 |
12.30 |
37.4 |
55 |
6.6 |
5.59 |
25 |
| HLS-39SS |
M39 |
1 1/2" |
1.591 |
2.303 |
0.260 |
13.82 |
40.4 |
58.5 |
6.6 |
6.28 |
25 |
|
|
|
|
